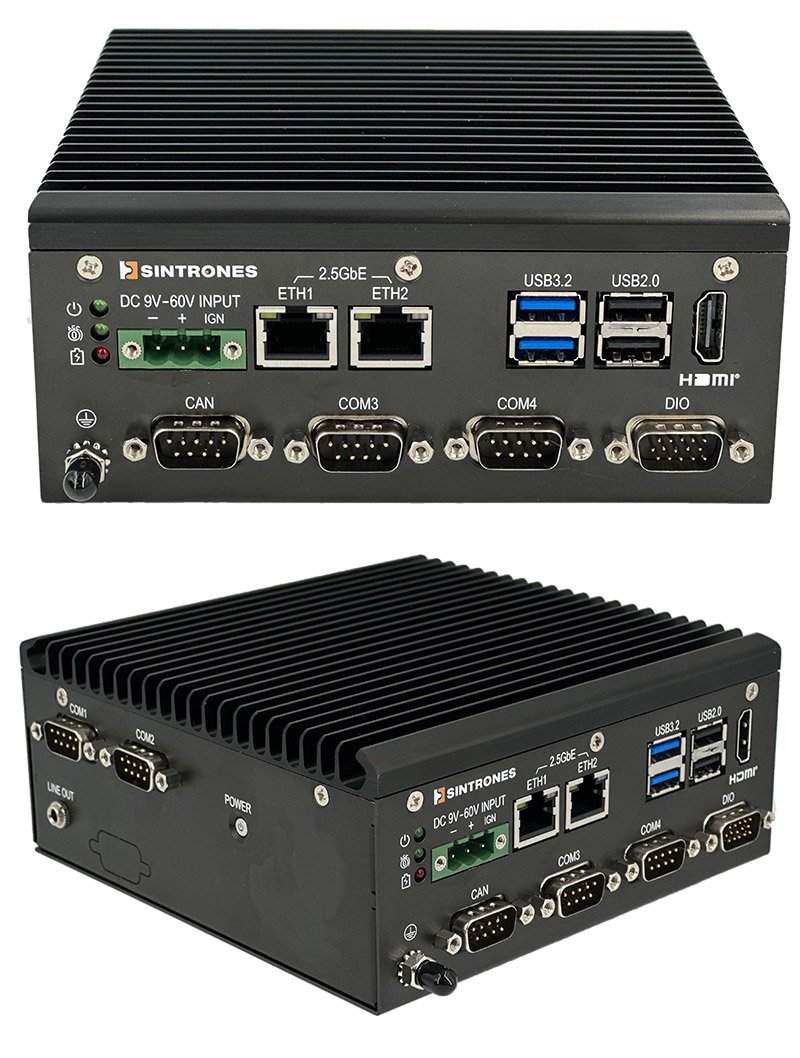

Sintrones VBOX-3132-D25-M12X-N4 (Intel N150, Fanless Rugged Edge Computer, M12, Backup Batterie Support)

Sintrones VBOX-3132-D25-M12X-N4 (Intel N150, Fanless Rugged Edge Computer, <b>M12, Backup Batterie Support</B>)
  • DIN-rail !
  • 2x 2.5GbE !
  • M12 !
  • Backup Batterie Support !

  • Industrial Grade Amston Lake Processor and Ethernet Controller
  • Intel® Twin Lake Processor SKU Available
  • 2 x 2.5GbE for IoT Devices Connectivity
  • 1 x Built-in CAN FD for Vehicle Device Communication
  • Dual NVMe SSD Support for NVR Applications
  • Built-in Watchdog and Smart Power Management for System Health Monitoring
  • Supports DIN-rail and Wall-mount Installation


Share

1029.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:

Prozessor / Graphics

Intel N150
Intel Graphics

Memory

1 x SO-DIMM DDR5 up to 16 GB



Security

1 x TPM 2.0
Watchdog: Auto reset for unresponsive system

Interface

1 x HDMI® with support for 4K@60Hz as specified in HDMI 2.0b


1 x Line-out, 1 x Mic-in (Optional)

• 1 x 2.5GbE from I226-IT via RJ-45 or M12 X-code for PoE model
• 4 x GbE* from Marvell Ethernet Switch w/ PoE (PSE Class 3: 15W) via RJ-45 or M12 X-code
* Share with 1GbE bandwidth; Power budget: 60W
**Non-PoE model: 2 x 2.5GbE

1 x CAN 2.0

2 x USB 3.2, 2 x USB 2.0

2 × RS-232/422/485 ports, expandable with 4 optional COM ports

8 x DI (9-60VDC), 4 x DO (12VDC/100mA)

INTERNAL EXPANSION

1 x M.2 3042/3052 Key B for WWAN with dual Nano SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT



STORAGE (Internal)

  • 1 x M.2 2280 Key M for NVMe SSD
    • 1 x M.2 2280 Key M for NVMe/SATA SSD

Operating System / SDK

Windows 11 IoT Enterprise LTSC, Ubuntu 22.04/24.04 LTS

Operating Temp.

Processor N150: -30°C ~70°C (-22°F~158°F) with 0.6m/s airflow * O perating temp. varies by accessories installed.



Storage Temp.

-40 ~ 80°C (-40°F ~ 176°F)

Relative Humidity 10% RH – 90% RH (non-condensing)
Certification / Standard CE, FCC Class A, UKCA, E-Mark
Vibration IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810H, Method 514.8, Procedure I, Category 4
Shock MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)
Ingress Protection

IP40
Power

DC 9 – 60V Input
Ignition detection, Smart Power Management

Battey Backup Unit (BBU)
Backup battery for system power backup
* Non-PoE model only

Mechanical

Aluminum Alloy with Fanless Design
6 x SMA connector panel mount hole
DIN rail, Wall-mount

1.90kg (4.19 lb)
M12 PoE model: 150 x 150 x 87 mm (5.91 x 5.91 x 3.43 in.)
ORDERING INFORMATION VBOX-3132P-yyy-zz
(yyy=M12X=M12 interface, yyy = Empty=RJ-45 interface; zz=A8=Intel Atom x7835RE, zz=A4=Intel Atom® x7433RE)

VBOX-3132-D25-M12X-zz
(zz=A8=Intel Atom® x7835RE, zz=N4=Intel® Processor N150)

VBOX-3132-D25-zz
(zz=N4=Intel® Processor N150)
