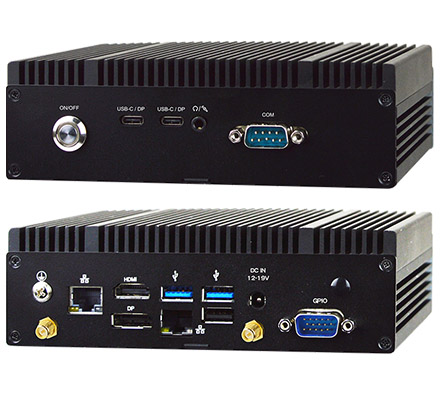

Jetway BFTADN1-N97-NT (BoxPC Intel N97, DDR5, TPM2.0, 12-19V Input) [FANLESS]

Jetway BFTADN1-N97-NT (BoxPC Intel N97, DDR5, TPM2.0, 12-19V Input) <b>[FANLESS]</b>
  • Onboard Intel N97 !
  • 2x LAN !
  • 64GB eMMC !

  • 1 x DDR5 4800MHz SODIMM Slot, up to 32GB
  • 1 x HDMI 2.0b, 1 x DP1.4a
  • 2 x 2.5GbE, 1 x RS485/422/232, 1 x Audio
  • 2 x USB 3.2 Gen2, 1 x USB2.0, 2 x USB3.2 Type C
  • 1 x M.2 2260/2280 M-key, 1 x M.2 2230 E-key
  • MB support Wide DC Input 12-19V


Share

439.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
SYSTEM
CPU Onboard Intel® Processor N-series Processors (formerly Alder Lake N)
Intel® Processor N97
*For additional compatible CPUs, please contact regional sales
CHIPSET —
SYSTEM MEMORY 1 x DDR5 4800MHz SODIMM up to 32GB
DISPLAY INTERFACE 1 x HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
1 x DisplayPort for DP1.4a (Max Resolution: 4096×2304@60Hz)
2 x USB3.2 (type C, support DP ALT mode, Max Resolution: 4096×2304@60Hz)
Supports 3 Displays
STORAGE DEVICE 1 x M.2 2260/2280 M-key(SATA or PCIe Gen.3 x2) support NVMe
64GB eMMC 5.1 onboard
ETHERNET 2 x Intel® I225-V, 2.5GbE
Front I/O Power button
Power LED
2 x USB3.2 (type C, support DP ALT mode)
1 x Combo Audio (Line out & Mic)
1 x DB-9 for RS-232/422/485
Rear I/O 3 x SMA Antenna Hole
2 x RJ45
1 x USB2.0
2 x USB3.2 Gen2
Ground screw
1 x HDMI
1 x DP
1 x GPIO
1 x DC jack
EXPANSION 1 x M.2 2230 E-Key for WiFi module
TPM2.0 (optional)
INDICATOR 1 x Power LED
OS SUPPORT Windows® 11
Linux
POWER SUPPLY
POWER REQUIREMENT MB: DC Input 12~19V
Adapter: AC100~240V / DC12V_3.3A_40W
MECHANICAL
MOUNTING Desktop, Wallmount, Din Rail
DIMENSIONS (W x H x D) 160(W) x 109.2(D) x 50.5(H) mm
GROSS WEIGHT 2.4 kg
NET WEIGHT 1.4 kg
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE 0°C ~ 60°C (32°F ~ 140°F)
(Under the condition of using M.2 interface SSD)
STORAGE TEMPERATURE -40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY 10 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION —
ANTI-SHOCK —
CERTIFICATION CE/FCC Class A, LVD
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
