Jetway HB652I3H-R680-AI2 (Intel R680E Chipset, LGA1700, DDR5-5600Mhz) [Intel HAILO-8 / 52 TOPS]

Jetway HB652I3H-R680-AI2 (Intel R680E Chipset, LGA1700, DDR5-5600Mhz) <b>[Intel HAILO-8 / 52 TOPS]</b>
  • Intel R680E Chipset !
  • 2x LAN !
  • 8x USB3.2 !
  • HAILO-8 Card !

  • Intel® 13th LGA1700 Socket Processor
  • 2* DDR5 5600MHz SO-DIMM up to 64GB
  • 2* 10/100/1000/2500 Base-T Ethernet Ports
  • 2* M.2 M-key, 1* M.2 E-key, 1* M.2 B-key
  • Hailo-8 expansion card , up to 52/104 TOPS
  • 1* HDMI, 2* RS232/422/485, 4* RS232, 8* USB3.2(Gen.2),2* USB2.0
  • Dimensions: 306* 199* 79 mm
  • Adapter DC19V/120W


Share

1329.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
Model – HB652I3H-R680-AI2 (non-WiFi) (1* HAILO-8™ Card / 52 TOPS)
CPU/Chipset – Intel® 13th LGA1700 Socket Core i9/i7/i5/i3/Pentium/Celeron Processor (Max. TDP 65W)
– Intel R680E Chipset
MB Model – MI3H-R6802 (TPM2.0)
BIOS – AMI Flash ROM BIOS
Memory – 2* DDR5 5600MHz Dual Channel SO-DIMM up to 64GB
Network – 1* Intel i225-V 2.5GbE
– 1* Intel i225-LM 2.5GbE
Grapics – Intel® HD Graphics, shared memory
– 1* HDMI
Audio – HD audio: Realtek ALC897/ALC888S (with 3W Amp.)
Storage – 2* M.2 M-key (2242/2280, PCIe Gen.4×4) support NVMe
– 1* 2.5” SATA Device
Expansion – 1* M.2 E-key (2230, PCIe Gen.3×1/USB2.0) support CNVio
– 1* M.2 B-key (3042/3052, USB3.2/USB2.0/PCIe Gen.3×1)
AI Accelerator – 1/2 Hailo-8 AI Card(by model)
Note: There are 2 HAILO-8 chips on each AI expansion card, Expansion through PCIe x 8 slot

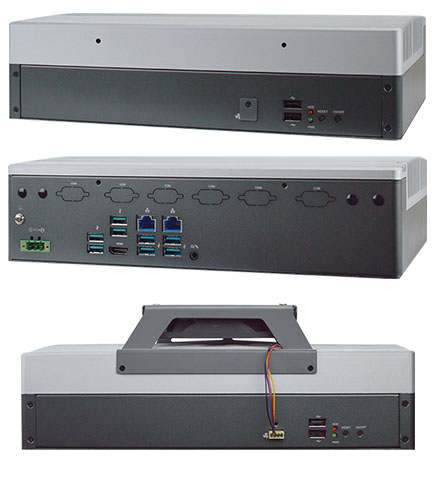

Rear Panel I/O – 8* USB3.2 (Gen.2)
– 2* LAN
– 1* HDMI
– 1* Audio jack (Line-out/MIC combo)
– 1* DC-in (3 PIN Industrial Connector)
– 6* COM (2* RS232/422/485,4* RS232)
Front Panel I/O – 1* Power button
– 1* Reset button
– 1* Power LED
– 1* HDD LED
– 2* USB 2.0
– 1* EXT FAN module link
Internal Connector – SIM Card Holder
– 1* GPIO
Power Source – Adapter: AC 90~240V input/DC19V_120W output
– MB: DC12~36V input
Compliance – CE, FCC, LVD, RoHS, ErP Ready
Dimensions – System: 306 (W)* 199 (D)* 79 (H) mm
– Box: 406 (W)* 359 (D)* 148 (H) mm
– Net Weight: 5.5 KG
– Gross Weight: 6.5 K
Temperature – Operating Temperature: -20 ~ 50° C
(Under the condition of using M.2 interface SSD)
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)
OS Support – Windows 11, Linux
