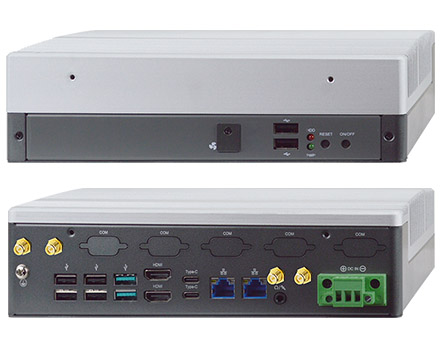

Jetway HB650I24-1335UE (Intel Raptor Lake-P, 2x 2.5GbE, i5-1335UE, 2x USB-C)

Jetway HB650I24-1335UE (Intel Raptor Lake-P, 2x 2.5GbE, i5-1335UE, 2x USB-C)
  • i5-1335UE !
  • 2x USB-C !
  • 6x USB !
  • 2x LAN !

  • Intel® 13th Raptor Lake-P Processor
  • 2* DDR5 5200MHz SO-DIMM up to 64GB
  • 10* USB, 2* RJ45,1* Audio, 2* HDMI, 5* COM
  • 1* M.2 M-key 2280, 1* M.2 M-key 2242, 1* M.2 E-key 2230, 1* M.2 B-key 3042/3052
  • Support TPM2.0 (option)
  • Dimensions: 224 * 199 * 63 mm
  • Adapter DC19/120W


Share

1169.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
Model – HB650I24-1335U (non-WiFi)
– HB650I24I-1335U (WiFi)
– HB650I24-1335UE (non-WiFi)
– HB650I24I-1335UE (WiFi)
CPU/Chipset – Intel® 13th Raptor Lake-P Processor (15W TDP)
MB Model – MI24-13350B (i5-1335U/15W)
– MI24-133E0B (i5-1335UE/15W)
BIOS – AMI Flash ROM
Memory – 2* DDR5 5200MHz SDRAM SO-DIMM up to 64GB
Network – 1* Intel i225-LM 2.5GbE
– 1* Intel i225-V 2.5GbE
Graphics – Intel® Iris® Xe Graphics, shared memory
– 2* HDMI 2.0b (Max Resolution: 4096×2304@60Hz)
Audio – HD audio: Realtek ALC888S + 3W Amplifier
Storage – 1* M.2 M-key (2242/2280, PCIe Gen.4×4 interface) support NVMe
– 1* M.2 M-key (2242, SATA interface)
Expansion – 1* M.2 E-key (2230, USB2.0/PCIe x1 interface) support CNVi for WiFi
– 1* M.2 B-key (3042/3052, USB3.1/USB2.0/PCIe x1 interface) for 4G/5G module
Rear Panel I/O – 2* RJ45
– 2* USB3.2 (Gen.2)
– 2* USB3.2 (Gen.2) Type-C support DP ALT mode & PD 5V/3A
– 4* USB2.0
– 2* HDMI
– 1* Audio combo (Line out+ Mic)
– 1* DC in (Industrial Connector)
– 5* COM (2* RS232/422/485, 3* RS232)
Front Panel I/O – 1* Power button , 1* Reset button
– 1* Power LED , 1* HDD LED
– 2* USB2.0
– 1* FAN Expansion con
(The external fan module needs to be purchased separately)
Internal Connector – SIM Card Holder
Power Source – Adapter : AC 90~240V input / DC19V_120W output
– MB : DC12~36V input (Wide Voltage Power Board build inside)
Compliance – CE, FCC, LVD, RoHS, ErP Ready
Dimensions – System : 224 (W) * 199 (D) * 63 (H) mm
– Package : 406 (W) *359 (D) * 148 (H) mm
– Net Weight: 4 KG
– Gross Weight: 5 KG
Temperature – Operating Temperature: -20 ~ 60° C
(Under the condition of using M.2 interface SSD)
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)
OS Support – Windows 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
