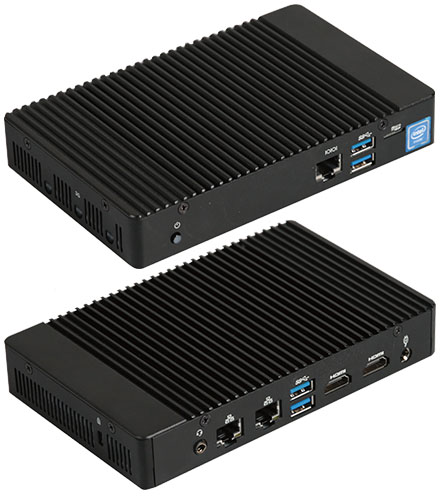

Gigabyte QBiX-Plus-APLA3450-A1 (Intel Celeron N3450, 2x LAN, 2x HDMI, 1x RJ45 COM, VESA) [FANLESS]

Gigabyte QBiX-Plus-APLA3450-A1 (Intel Celeron N3450, 2x LAN, 2x HDMI, 1x RJ45 COM, VESA) [<b>FANLESS</b>]
  • 2x Gigabit LAN !
  • Metal enclosure !
  • VESA Mount !
  • IoT Gateway !

  • Intel® Celeron Processor N3450
  • System Size only: 165W x 105D x 27H (mm)
  • 2 x SO-DIMM DDR3L slots
  • 2 x GbE LAN ports
  • 2 x HDMI ports
  • 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)
  • 1 x Micro SD card slot


Share

298.00 EUR
incl. 19% VAT, plus shipping
In Stock (19 pcs)
Add to cart
RAM :

SSD (M.2 NVME):

Build/Install:
Dimension System Size : 165W x 105D x 27H (mm)
CPU Intel® Celeron® N3450 Processor 14nm, 4 cores, 4 threads, up to 2.2 GHz TDP 6W 2MB L2 cache
Chipset SoC
Memory 2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Support Dual Channel DDR3L 1866 MHz memory modules
Ethernet 2 x GbE LAN Ports (Realtek® RTL8111HS)
Graphic Support Integrated Graphics Processor - Intel® HD Graphics 500: 2 x HDMI 1.4 ports, supporting a maximum resolution of 3840x2160 @30Hz
(2 independent display outputs)
Audio Realtek® Audio Codec
Expansion Slots 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)
Front I/O 2 x USB 3.0 1 x COM Port (RS-232/422/485)(RJ45 Type) 1 x Micro SD card slot 1 x Power button
Rear I/O 1 x Combo Audio Jack (Microphone & Headphone) 2 x RJ45 LAN Ports 2 x USB 3.0 2 x HDMI 1 x DC Jack
Side I/O 3 x External Antenna Holes (Optional)
Power +19VDC (Adapter 19V/65W)
Operation Temperature Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing)
Packaging Content Carton size: 416 x 359 x 257 (mm)
Packing Capacity: 10pcs

Including:
Power Cord 3Gx0.75 H03VV-F SP05/QP038 700mm TW x 1 (P/N: 25CP2-007006-Q0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065K-F3S)
RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150400-S9R)
Vesa Mount Bracket x 1 (P/N: 25HB2-XM2720-E4S)
Order Information System: 9BCBBAZAMR-SI (CTO)
(Built in Components: Please contact with your sales representative for more information
or e-mailed to : sales@gigaipc.com)
Optional Kit Internal Antenna 200mm : 25CA0-200006-A5S Internal Antenna 230mm : 25CA0-230001-A5S Internal Antenna 150mm : 25CA0-150002-A5S WiFi/BT module : 25FC7-3165N0-10R Antenna_WiFI x 2 : 25CA0-111000-A5S Antenna_3G x 1 : 25CA0-111001-A5S
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Manual Download
