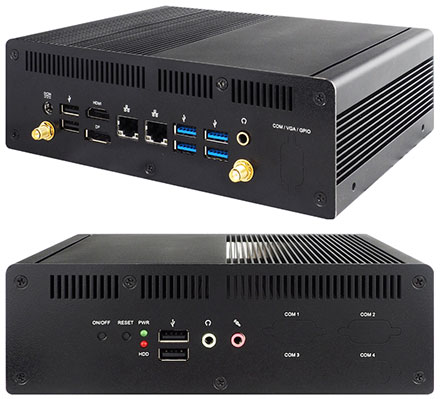

Jetway HBFDF632-7300-N (Intel Kabylake)

Jetway HBFDF632-7300-N (Intel Kabylake)

  • Intel® Skylake/Kabylake U Processor (TDP 15W)
  • Support 2* SO-DIMM DDR4-2133 , up to 32GB memory
  • 4 * USB2.0, 4 * USB3.0, 1 * HDMI, 1 * DP, 2 * RJ45, 1 * MIC, 1 * Line out
  • Support Max. 4K display resolution
  • DC-12V_60W FSP Adapter


Share

1049.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

SSD (2.5"):

OS:

Build/Install:
Model – HBFDF632-7300-N
– HBFDF632Z-7300-N
CPU/Chipset – Intel® Kaby Lake-U Processor (TDP 15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.
BIOS – AMI Flash ROM
Memory – 2* DDR4 2133MHz SO-DIMM up to 32GB
Network – 1* Intel® i219LM GbE
– 1* Intel® i211AT GbE
Graphics – Intel® HD Graphics, shared memory
– 1* DP 1.2 (Max Resolution: 4096×2304@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2160@24Hz)
– Support Dual Displays
Storage – 1* mSATA (shared with full size Mini-PCIe)
– 1* 2.5” SATAIII Device (support 2.5” HDD with a height ≤ 10mm)
Expansion – 1* Mini-PCIe half size (for WiFi expansion)
– 1* Mini-PCIe full size (shared with mSATA)
Rear Panel I/O – 2* USB 2.0
– 4* USB 3.0
– 2* RJ45
– 1* HDMI
– 1* DP
– 1* Line-out
– 1* GPIO (optional)
– 2* Antenna holes (optional)
– 1* DC-in Jack
Front Panel I/O – 2* USB 2.0
– 4* COM (Max)
– 1* Power LED
– 1* HDD LED
– 1* Line-out
– 1* MIC
– 1* Power button
– 1* Reset button
Internal Connector – Onboard TPM2.0 (option)
Power Source – JNF632N-7300U MB : DC-in 9~24V
– Adapter : AC_90~240V / DC_12V_5A / 60W
Compliance – CE, FCC, LVD Ready
Dimensions – System: 193 (W) x 142.4 (D) x 62 (H) mm
– Box: 250 (W) x 118 (D) x 295 (H) mm
Temperature – Operating Temperature: -20 ~ 50° C (Under the condition of using mSATA or SSD)
– Operating Temperature: 0 ~ 50° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -20 ~ 60° C
– Humidity: Between 40% and 60%, non-condensing
OS Support – Windows 10, Linux
